DanTest QHRV Hardware Devices

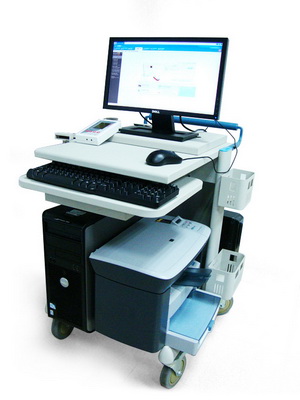

HW5 Device
The HW5 device is the top hardware product offered by DanTest QHRV. This device can communicate with any computer using USB cable, Infra Red and Bluetooth.
HW5 has two data input channels: ECG and Pulse Wave signal (Plethismogram). Both channels are 16bit with available reading frequency of 100, 250, 360, 400 and 600 Hz. The strength of the signal is automatically amplified.
HW5 can operate in two separate modes:
Real Time: While connected to a PC, patient data transfers directly and in real time to the computer for instant evaluation and analysis.
Standalone: Data from both channels is able to be stored in the hardware memory for analysis without the aid of a computer. The hardware can store measurement from more than 50 patients at any given time. All patient data can be transferred later to a PC for further analysis and reporting.
This device meets all USA and EU medical safety standards.
HW6 Device
The HW6 device is similar in functionality to the HW5, however, this device is only able to communicate with a computer using a USB cable.
HW6 has two data input channels: ECG and Pulse Wave signal (Plethismogram). Both channels are 16bit with available reading frequency of 100, 250, 360, 400 and 600 Hz. The strength of the signal is automatically amplified.
HW6 can operate only while connected to a PC, patient data transfers directly and in real time to the computer for instant evaluation and analysis.
This device is FDA 510k cleared and meets all USA and EU medical safety standards.
HW8 Device
The HW8 device is able to communicate with any computer using USB cable.
HW8 has one data input channels: Pulse Wave signal (Plethismogram). The channel data is 16bit with available reading frequency of 100, 250, 360, 400 and 600 Hz. The strength of the signal is automatically amplified.
HW8 can operate in two separate modes:
Real Time: While connected to a PC, patient data transfers directly and in real time to the computer for instant evaluation and analysis.
Standalone: Data from both channels is able to be stored in the hardware memory for analysis without the aid of a computer. The hardware can store measurement from more than 50 patients at any given time. All patient data can be transferred later to a PC for further analysis and reporting.
This device meets all USA and EU medical safety standards.
|
|
|
|
